Three-in-one automatic filling machine working principle

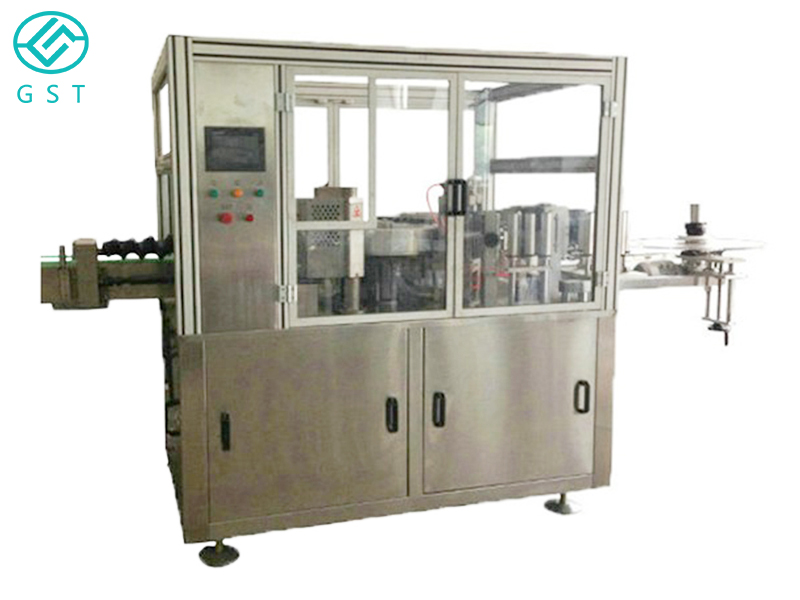

　　The liquid automatic filling machine is made of stainless steel body, the cup lowering, capping and sealing are all done in one go. The machine is mainly used for filling and capping of cups, boxes, bottles and other pharmaceutical reagents and beverages, and can also be used for capping of other shaped packages. Automatic cup lowering, automatic cap release, automatic sealing and automatic cup discharging; imported stepless variable speed system is adopted to adjust the production speed; cam indexer is adopted to make the positioning of the lower film precise and the machine runs smoothly; the suction of the cap and sealing are completed at the same time and the movement of the lower film has no effect on the positioning accuracy of the cap film.

　　The working principle of the 3-in-1 filling machine

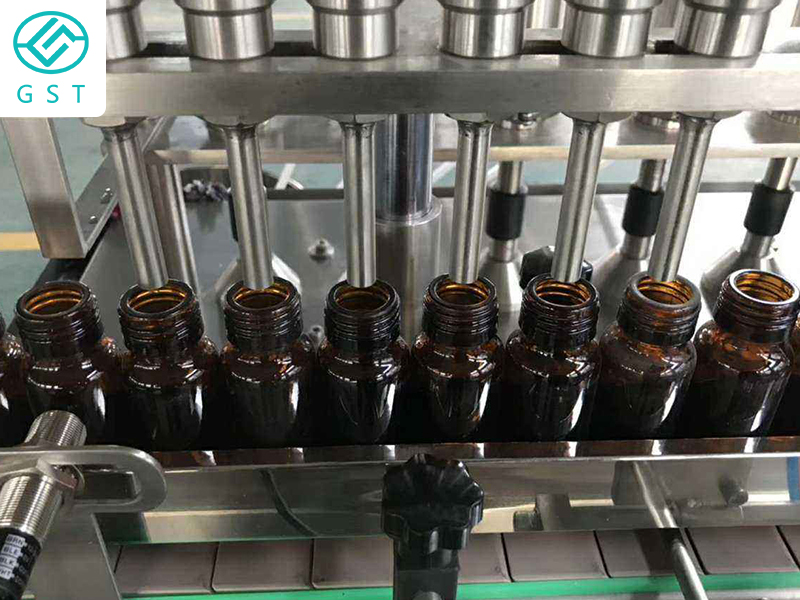

　　Pass into the air source to check the sealing surface, adjust the air pressure to 0.3~0.4MPa to adjust the oil intake, generally spray a drop of oil after a number of movements, and check the oil spraying situation regularly. Anti-drip filling system: when filling, the cylinder moves up and down, driving the bore. When the cylinder moves upwards, the bored head moves upwards, i.e. the valve opens and the filling of materials begins. When the cleaning is finished, the control valve is closed, the motor stops rotating and the system returns to its initial state and starts the next process.

　　Applications of the 3-in-1 filling machine

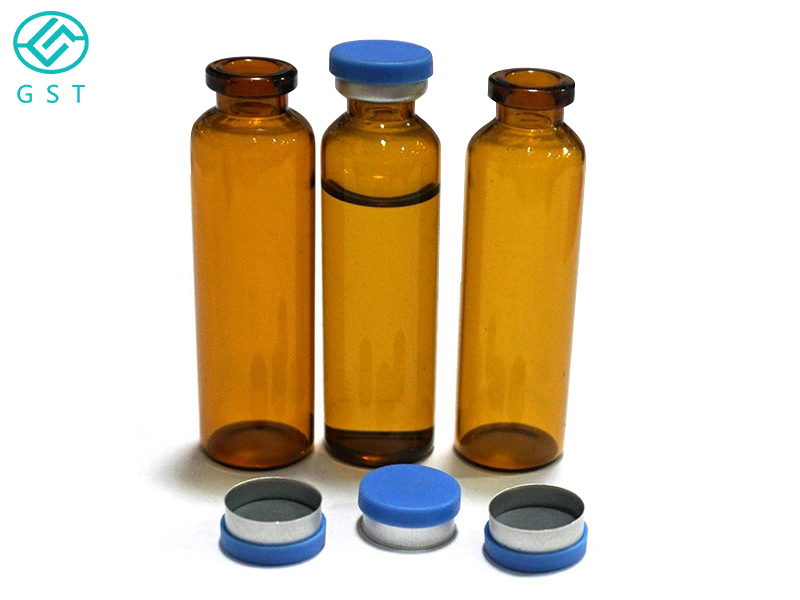

　　This machine is mainly used for liquid filling operations. This machine combines the three functions of rinsing, filling and capping in one body, the whole process is automated and is suitable for filling polyester bottles, plastic bottles for drinks, mineral water, pure water, medical reagents, etc. The adjustment of the trial bottle shape of each part is achieved by the rotation of the handle, which is easy and comfortable, simple and quick. The filling method adopts a new type of micro-pressure filling, which makes the filling speed faster and more stable, so the output of this machine is higher and more effective compared with machines of the same specification. The machine adopts an advanced programmable controller to control the automatic operation of the machine. The operation of each component is detected by light and electricity, so the machine is highly automated and easy to operate. On this basis, this machine changes the filling equipment and can form a low vacuum filling method.
