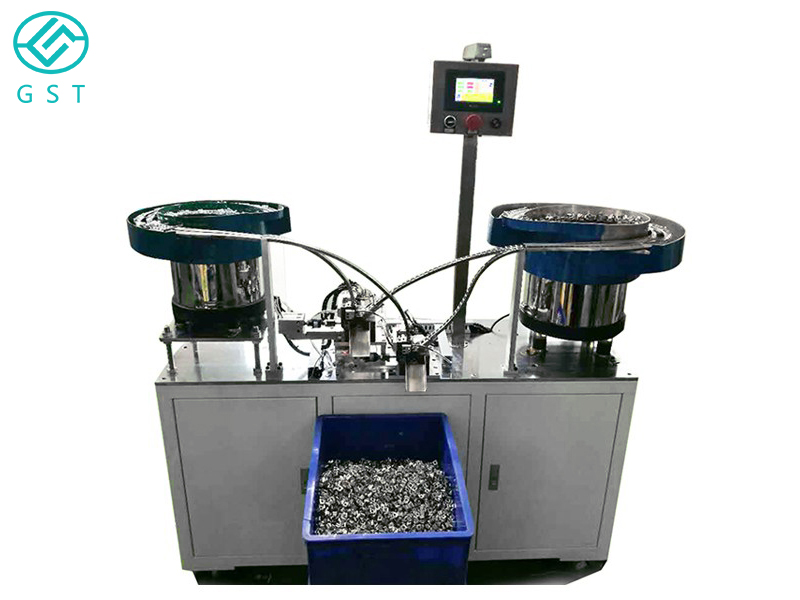

Machine Description:
1) Instead of manpower to complete the automatic assembly of nut picking, placing, pressing people and other actions, nuts, shrapnel transportation, assembly of a one-time completion of the improved production efficiency.
2) automatic detection, can automatically detect whether the material is in place, can be determined to monitor the operation of the angle and abnormal state of the detection of the completion of a one-time assembly, start with material, no material when the shutdown alarm.
3) The use of touch screen, intuitive interface, simple operation, security;.
4) output setting, automatic counting, can work continuously for 24 hours.
5)Humanized design, automatic counting.
6)Failure automatic shutdown alarm, and display the error message.
7)Multiple after-sales service points across the country, so that you can save your heart.
8)The operator can control the action of each organization through the human-machine interface, and can input and modify various working parameters, set the production quantity, downtime, and troubleshooting through the alarm information prompted by the interface when the machine encounters faults.
Application industry:

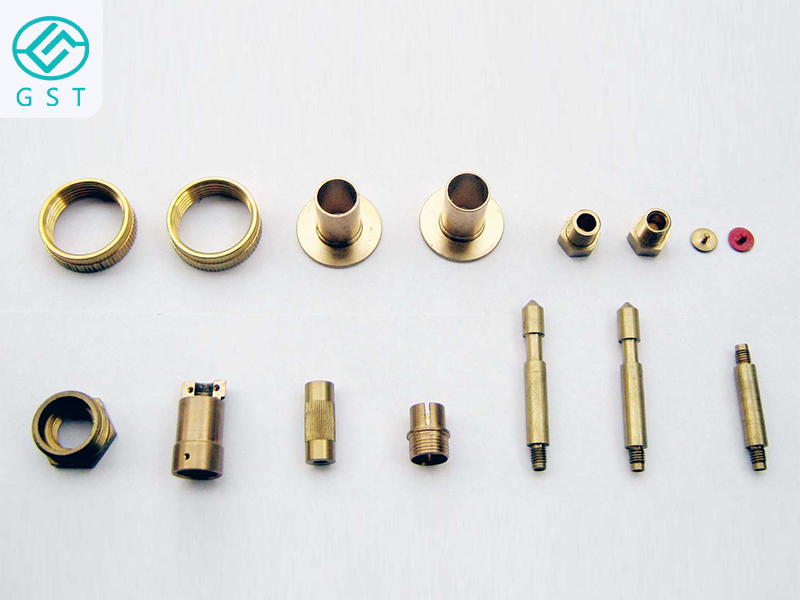

This kind of machine is widely used in hardware accessories assembly and processing production industry.
Product advantages:

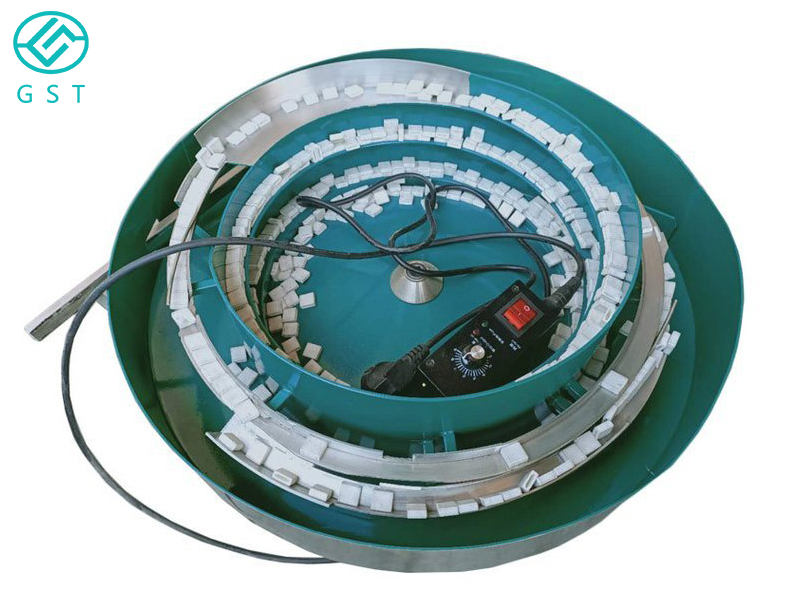

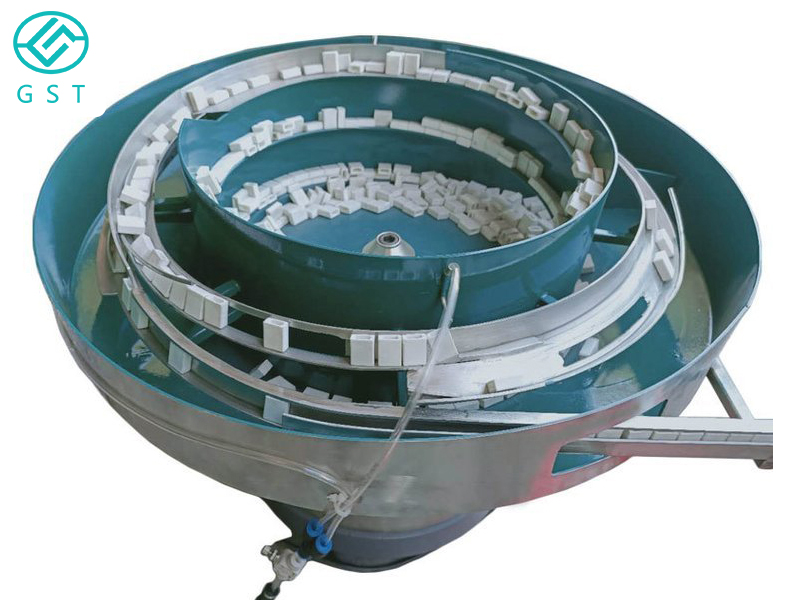

1. the parts directional arrangement, transportation, escapement system will be disordered parts according to the space orientation to facilitate the automatic processing of the machine automatically directional arrangement;.
2. Shift-placement mechanism will be positioned by the escapement mechanism to move the zero (parts) to another location (usually assembly work position); 3.
3. assembly work mechanism to complete the assembly work of the active mechanism, the workpiece will be pressed into, assembled on the previous component; 4.
4. the workpiece removal mechanism is used to remove the assembled parts from the machine; 5. the use of PLC control, the PLC control is not required.
5. PLC control, PLC to receive a variety of signal input, to send instructions to the various actuators. The machine is equipped with a variety of sensors and other signal collectors to monitor the operation of each actuator in the machine, after judgment to send the next step of the implementation of the instructions. The human-computer interface is used to display the machine's operating conditions, operating records, and to send commands from the operator to the machine.
