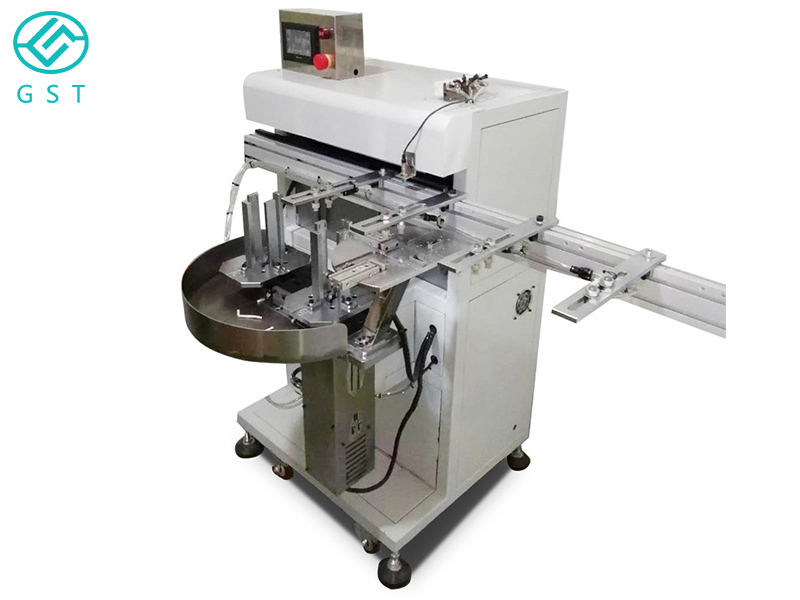

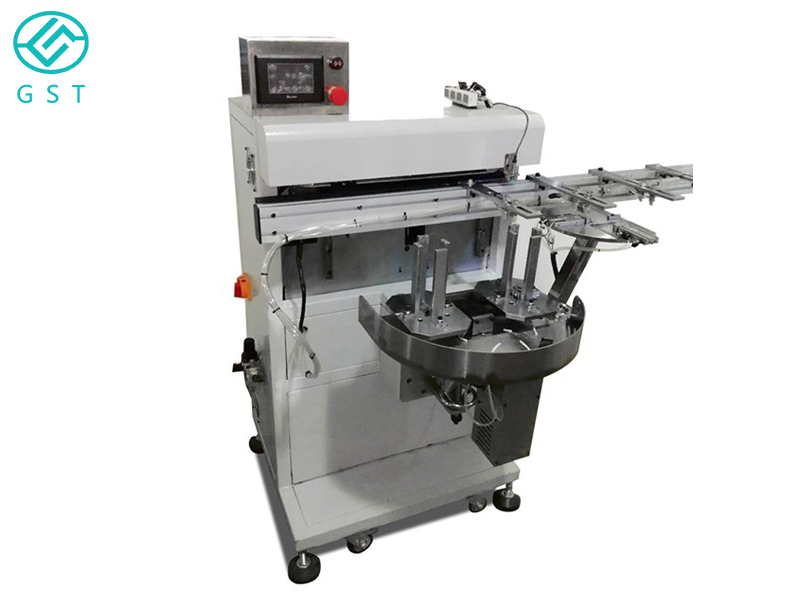

Machine Description:
This machine originated from a friend's stamping factory labor-intensive, low safety factor, the workplace fear and other issues and research and development, because the thickness of semi-finished products is thin, and also with a little oil, viscosity is slightly strong reasons, we after half a year of testing, research, pondering and ultimately came to the conclusion that the production, and in the debugging of the machine also appeared in a series of unknown problems and then eliminated one by one to come out of the punch supporting robot; after After several friends feedback and then improve, now and the punch press with a very beautiful, especially to avoid the 2 or more pieces of material to lead to the pressure die or mold punching bad problem; this equipment is controlled by the PLC digital system, the material tray automatically and orderly delivery of the workpiece; manual sheet material into the workplace to push the workstation, servo motors X-axis direction is equipped with a number of pick-up robot (vacuum or clamping claw), the piece of workpiece taken into fixed Workstation, fixed workstation to the sheet material positioning, secondary manipulator and the positioning of the sheet to take to the mold workstation, mold workstation stamping and then take to the secondary molding die inside the secondary molding, secondary molding robot and then take the finished product to the unloading conveyor belt, and with the drop detection and drop counting function, the finished product stacked to the required number of steps; has been able to line up full of pipeline, manually take finished products on the pipeline. Assembly line to take finished products; the entire automation process are sensor switches, photoelectric switches and other detection, to ensure the safety of automated operations, stability, speed, improve production efficiency, improve labor conditions. The equipment can be widely used in machinery, stamping, metal molding and other industries.
The company produces a variety of injection molding machine manipulator, non-standard manipulator (customized, placed inserts) all kinds of punching machine manipulator (drop, punching, deep-drawing, molding), welcome the need for friends call to consult.
Technical parameters:
1、Manipulator,feeding,receiving,collecting material frame is integrated.
2、Using microcomputer control, easy to operate.
3、Automation of the whole line, without manual material selection, high security.
4、Feeding accurate, high efficiency, product stability, reduce defective products.
5、Product size can be adjusted arbitrarily, mold with simple.
6、Servo feeding mechanism.
7、Multi-vacuum sucker for picking up materials.
8、Voltage: 220VAC, 50HZ.
9、Pneumatic pressure: 0.4-0.6MPA.
10、Working efficiency: 10-25 times / min.
