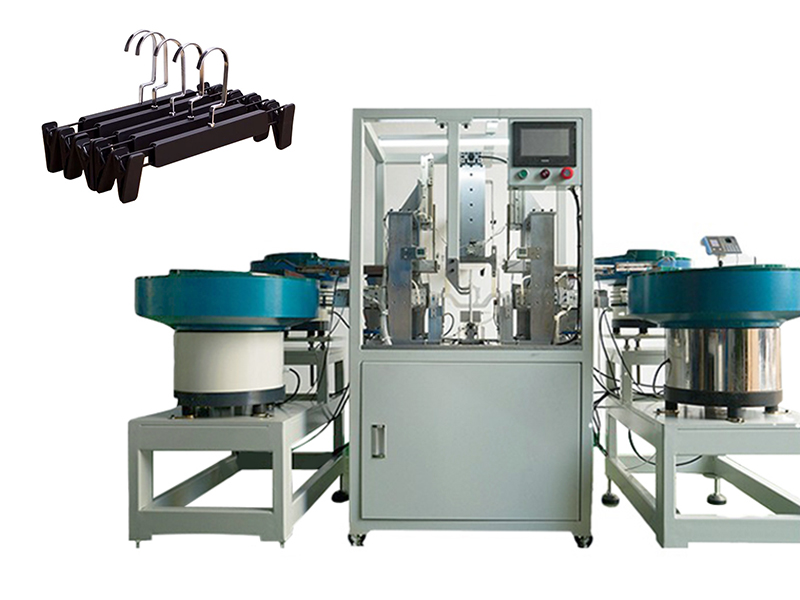

Automated Production Line Trouser Rack Automatic Assembly Machine

　　Machine Description:

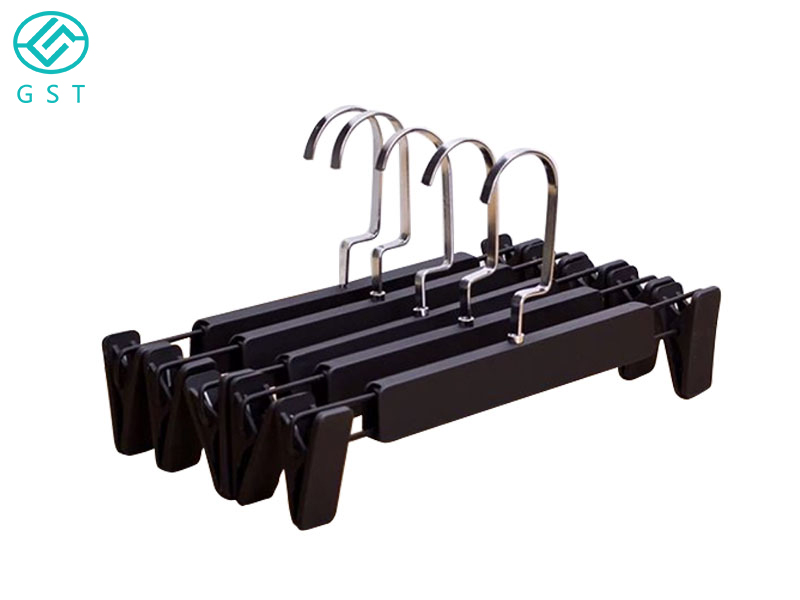

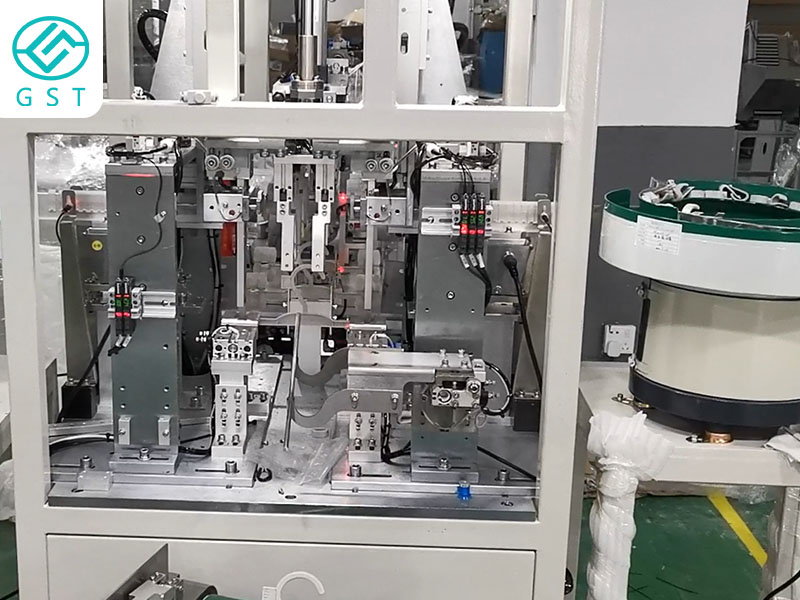

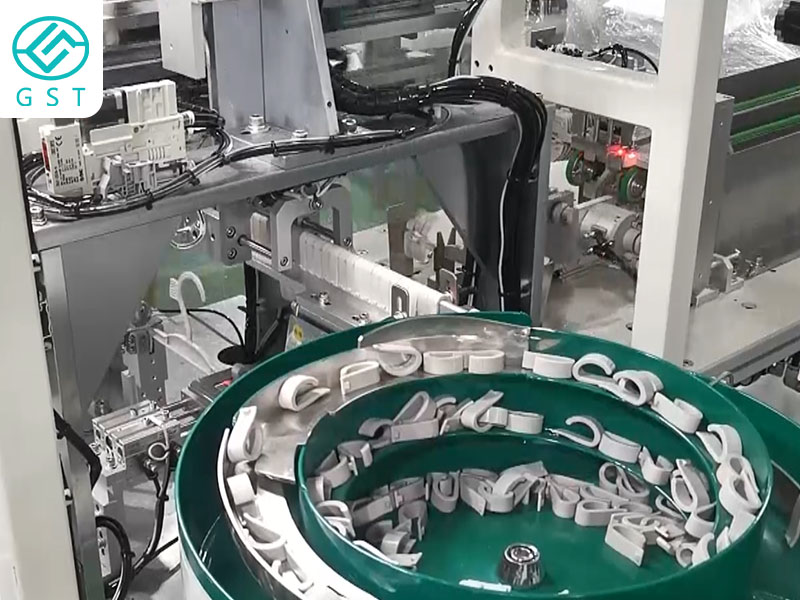

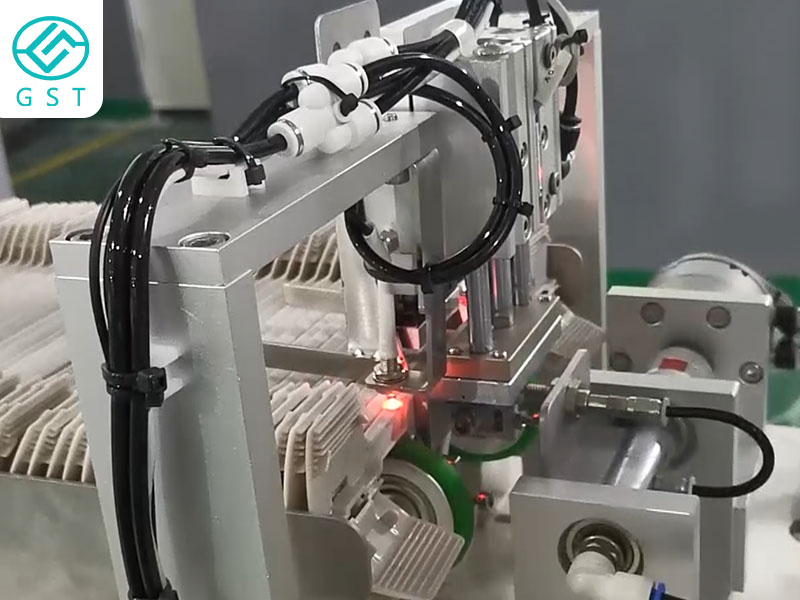

　　This machine should replace the manual assembly of pants clip hanger and development, after repeated tests, understand the characteristics of the product, reasonable design structure, and finally succeeded in the development of fully automatic pants hanger assembly, it is highly efficient, stable work, according to the product's trace deformation and burr (within the range) can also be overcome, and has been used by a number of customers to use the high evaluation; first of all, manual hanger rod hanged to the machine on top of the sliding rod, the machine is automatically a First of all, manually hang the hanger rod to the machine above the sliding pole, the machine will automatically arrange one by one next to the fixture, and then put the hanger clip and iron clip into the vibrating disk inside the automatic arrangement out, the homemade robot puts the hanger rod into the fixture, the fixture fixes the hanger, and then transports the fixture, and then the homemade robot puts the clip into the fixture, and then the robot removes the iron clip to be assembled, and then the assembled finished product will be picked up by the robot automatically and hanged on the sliding pole, and the manpower will only need to add and collect the material;.

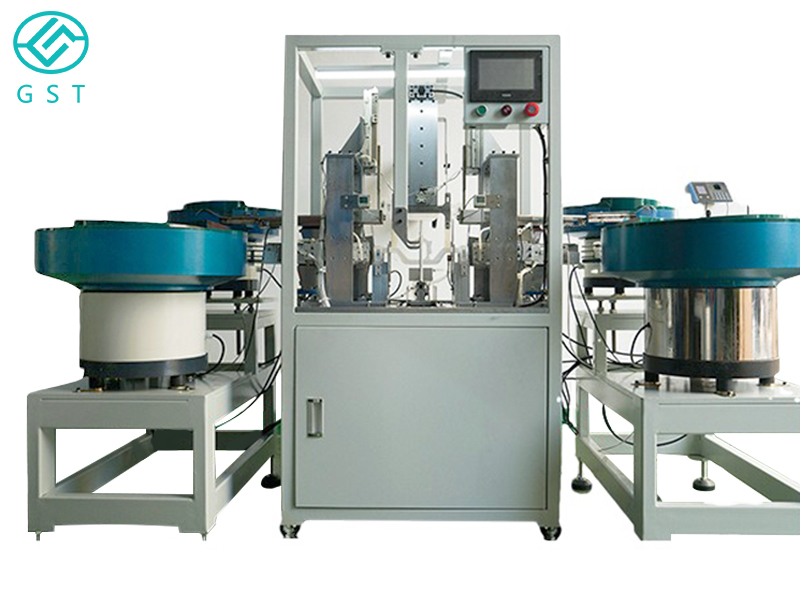

　　The appearance of the machine adopts the square welding and baking paint treatment, solid and stable, mechanical accessories are all surface treatment, so that the machine is durable, mechanical action parts are all protected by the protective cover, high machine safety, easy to use, a person can look at more than one, greatly reducing the labor cost, improve efficiency, quality assurance, is currently a low-profit industry a great helper.

　　Technical parameters:

　　Voltage: 220V AC 50HZ

　　Air pressure: 0.4-0.6MPA

　　Working efficiency: 10-20/minute

　　Dimension: L2600*W1800*1500H
