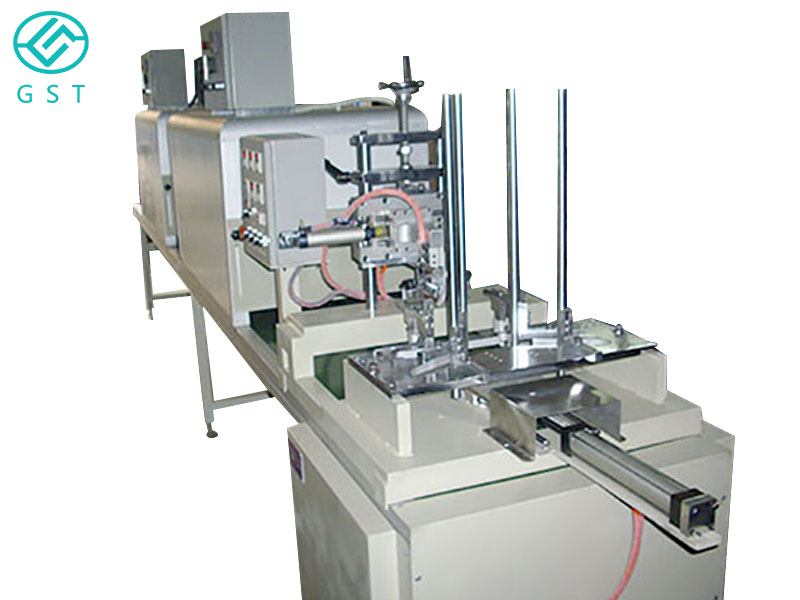

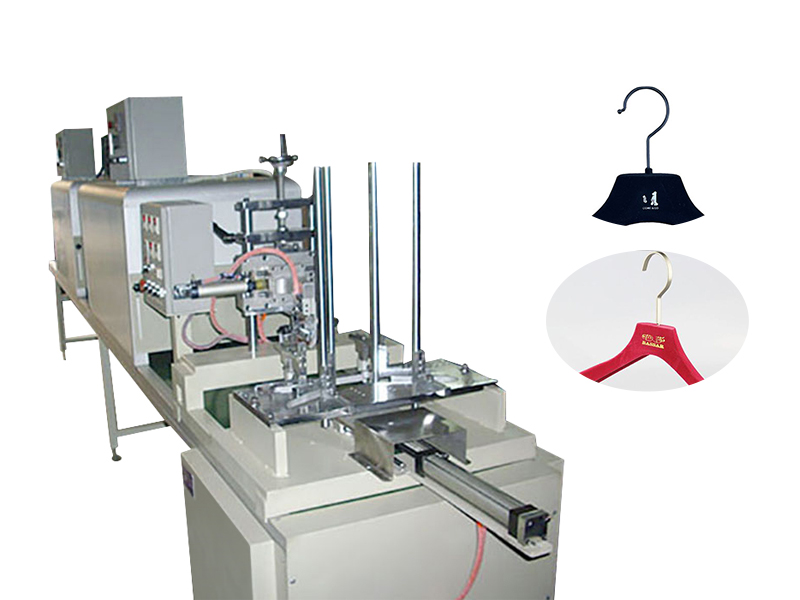

Machine Description:

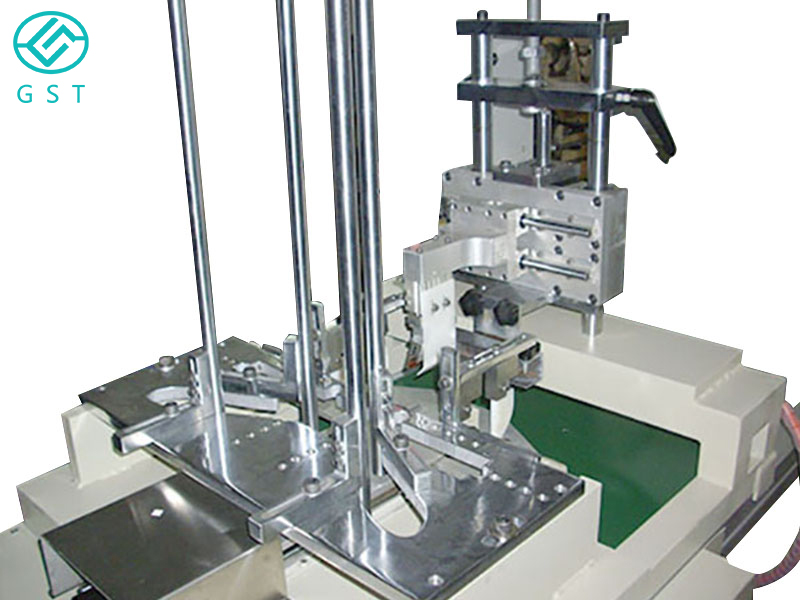

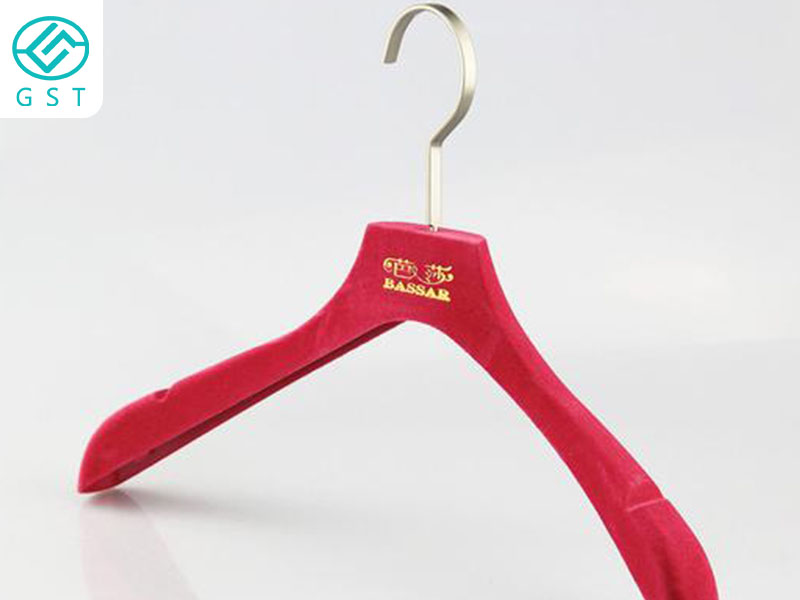

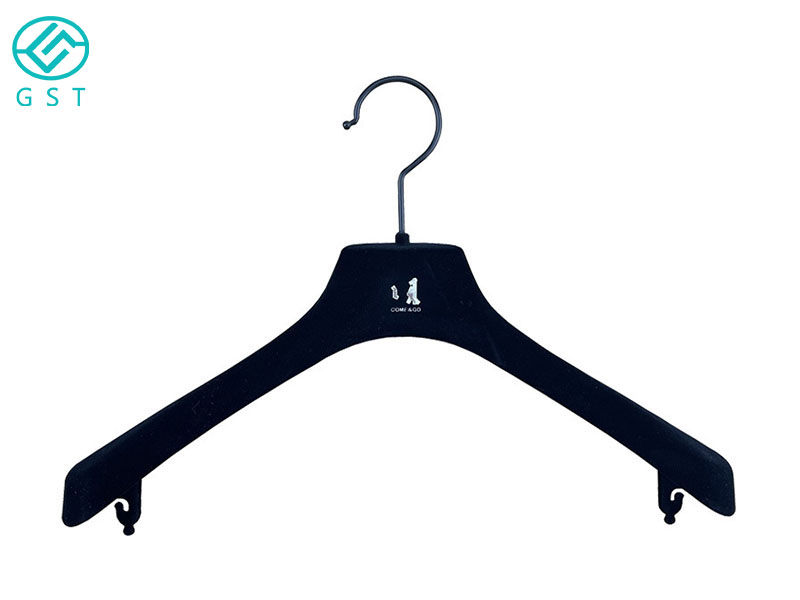

This machine is developed according to the requirements of plastic hanger factory customers, the machine is suitable for a variety of materials of plastic hanger printing, can also be adapted to a variety of hanger screen printing, different types of hanger need to replace the jig and adjust the trough, print LOGO, print code, etc.; the machine is mainly based on the original traditional pad printing machine to transform, increase the institutions, simulation of the evolution of the robotic hand, etc., the hanger by the trough into the robot, automatic loading, automatic transmission, automatic positioning pad printing, drying control according to the degree of ink drying, and then automatic discharging, only manual addition and final collection, the machine positioning accuracy, two-color secondary pad printing, only manually add material and final collection. Automatic loading, automatic transmission, automatic positioning pad printing, according to the ink dry and wet degree of control of drying, and then automatic feeding, only need to manually add material and the final collection of material, machine positioning accuracy, two-color secondary pad printing can also guarantee the positional tolerance, a person can look after the 2-3 machines, breaking the traditional pad printing of one person a machine rules, to solve the current difficult to recruit, labor shortage situation, covers an area of small, improve efficiency, ensure Quality, reduce costs, to the company won the absolute advantage of peer competition.
Technical parameters:
1. Vertical structure, PLC control, simple operation interface, language Chinese.
2. Adopt guide rail guide. Printing and ink return speed adjustable, smooth running, long service life.
3. Adopting independent buffer air circuit for positioning to ensure smooth positioning.
4. The surface of the machine is treated to make the machine beautiful and generous.
5. The oil cup is loaded with ink to keep the machine clean and tidy, and the printing pressure and mesh distance are convenient and easy to adjust.
6. The whole machine is equipped with safety guards
7. Cylinders, solenoid valves are made of Taiwan Yadek, and electrical appliances are made of Omron.
8. Voltage: 220V AC Air pressure: 0.4-0.6MPA.
9. Work efficiency: 10-20 times / min, size: L1500 * W800 * H1500
