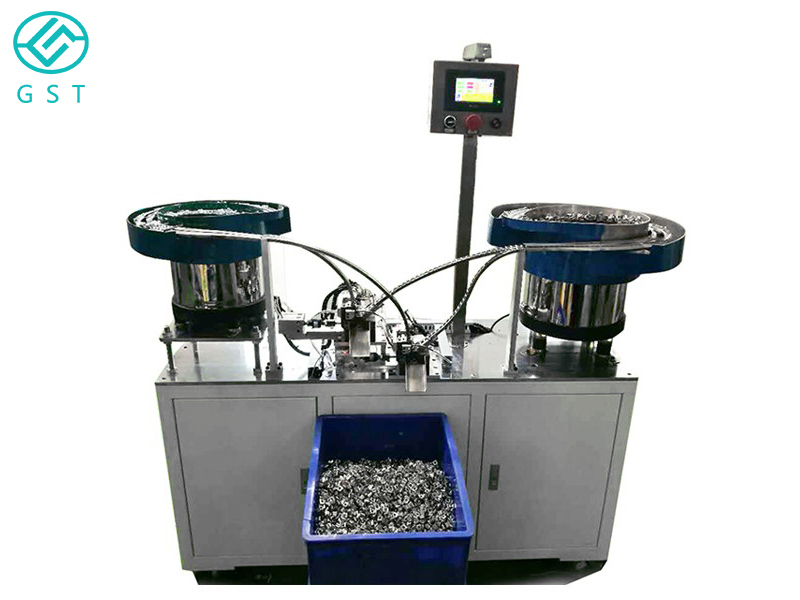

Machine description.
1) Instead of manual labor to complete the automatic assembly of the nut picking, placing, pressing and other actions, the transport of nuts, shrapnel, assembly is completed in one time to improve production efficiency;
2) Automatic detection, can automatically detect whether the material is in place, can determine the angle of monitoring operation and abnormal state of detection to complete the one-time assembly, with material to start, no material when the stop alarm;
3) Touch screen, intuitive interface, simple operation and safety;
4) Output setting, automatic counting, 24 hours continuous work;
5) Humanized design, automatic counting;
6)Automatic stop alarm and error message display in case of failure;
7) Many after-sales service points nationwide, so that you can use the worry;
8) The operator can control the action of each mechanism through the human-machine interface, and can input and modify various working parameters, set the production quantity and stop time in the interface, and can also troubleshoot the machine when it encounters a fault through the alarm message prompted by the interface.
Application industry: This type of machine is widely used in the hardware parts assembly and processing industry.
Product advantages.

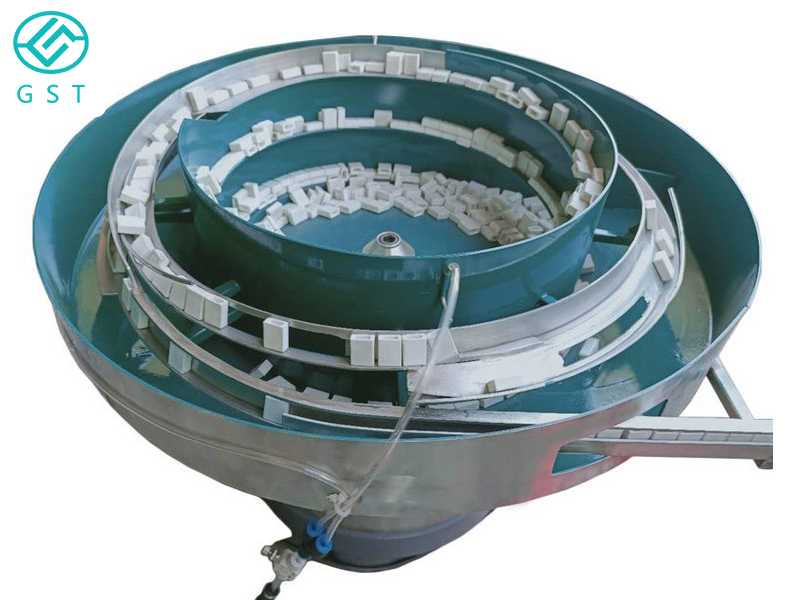

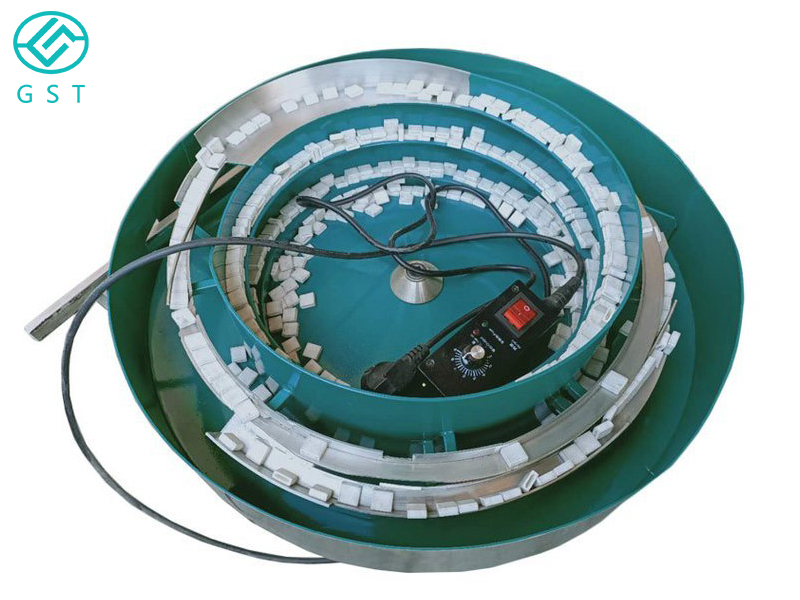

1. The parts orientation, transport and escapement system automatically orientates the disorganised parts in a spatial orientation that can be handled automatically by the machine;
2. shifting-positioning mechanism to move the parts positioned by the escapement to another position (usually the assembly working position);
3. the assembly work mechanism to complete the assembly work, press the workpiece into the previous part and assemble it;
4. the workpiece removal mechanism is used to remove the assembled parts from the machine;
5. PLC control, which receives the input of various signals and issues instructions to the actuators. The machine is equipped with a variety of sensors and other signal collectors to monitor the operation of each actuator in the machine and to issue instructions for the next step of execution after judgement. The human-machine interface is used to display the operation of the machine, the operation records and to send commands to the machine by the operator.
