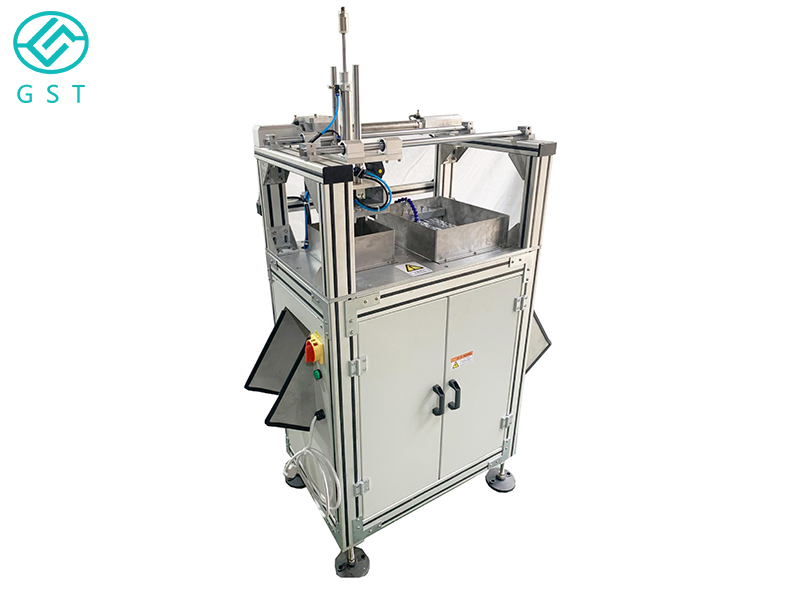

Machine description. This machine is developed according to the requirements of the plastic, backlight sheet factory customers, in the current market some existing machines cut water mouth using cold cutting, but acrylic cold cutting will be cracked, and to cut the flat not cracked will have to be hot cutting, but also to prevent sticky knife, so we deliberately after a long trial and research and development to make this and robot with close cooperation with the automatic water mouth cutting machine; machine for vertical machine, with When the robot takes out the product and puts it into the positioning fixture of our water-jet cutting machine, the fixture senses the product and moves to the water-jet cutting position, the water-jet cutting mechanism comes down and starts cutting the water-jet, the water-jet cutting mechanism rises and brings up the water-jet, the product loading fixture returns to the original position, the water-jet cutting mechanism puts the water-jet Put the water mouth into the water mouth basin, cut the water mouth machine automatic robot rotation 180 degrees to take out the finished product and then rotate back to the assembly line, the jig will wait for the next incoming material; so cut out the product flat, will not crack, there is no handprint lines, high quality, less staff, especially to meet the high requirements of the customer conditions.

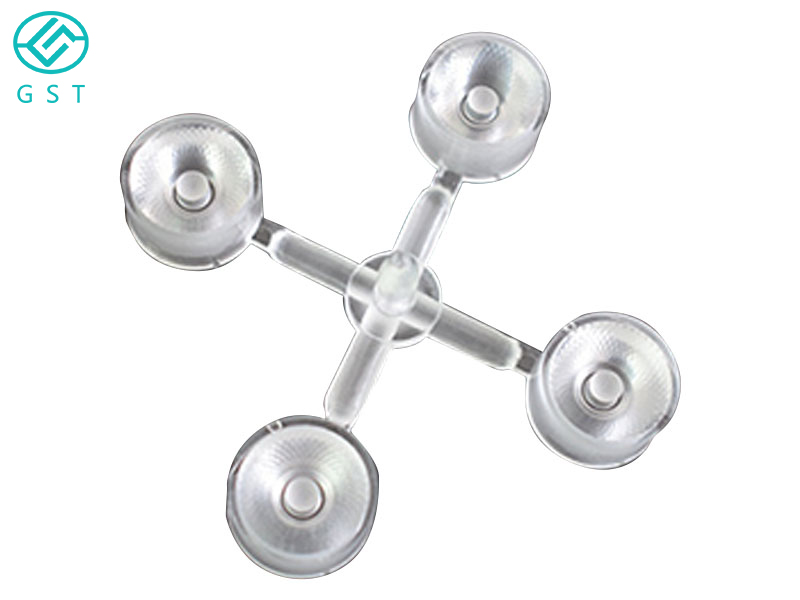

This machine can be dual-use, cold cutting, hot cutting, each product needs a jig, different products cutter need to adjust, can also cut other products of the water mouth, high versatility, affordable.

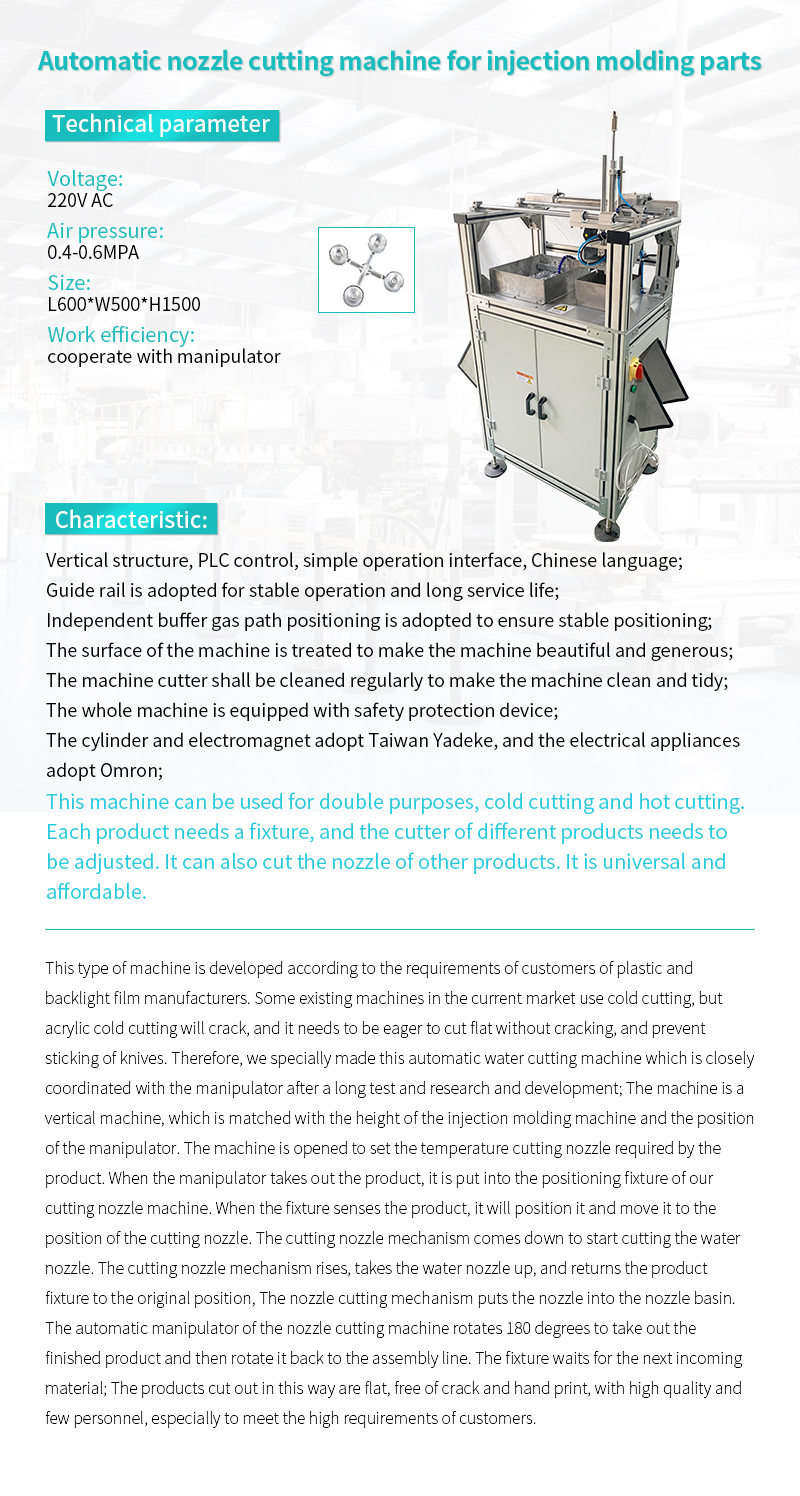

Technical parameters.
1. Vertical structure, PLC control, simple operation interface, Chinese language;
2. Using guide rail to guide, smooth running, long service life;
3. Independent buffer air circuit for positioning, ensuring smooth positioning;
4. The surface of the machine is treated to make the machine beautiful and generous;
5. The cutting knife is cleaned regularly, making the machine clean and tidy;
6. The whole machine is equipped with safety protection device;
7. The cylinder and solenoid valve are made by Taiwan Adcock, and the electrical appliances are made by Omron;
8. Voltage: 220V AC Pneumatic pressure: 0.4-0.6MPA;
9. Work efficiency with robot, size: L600*W500*H1500
