The automatic paste filling machine is a high-efficiency and high-precision filling equipment, which is widely used in cosmetics, food, medicine and other fields. This article will introduce the relevant knowledge of the automatic paste filling machine in detail from the aspects of principle, structure, work process and characteristics.
A. Principle
The working principle of the automatic paste filling machine is to use the pneumatic device to control the movement of the filling head and the positioning device to realize the automatic filling of the paste. During the filling process, the pneumatic cylinder pushes the filling head to complete the filling action through compressed air, and at the same time, the positioning device keeps the bottle stable to ensure the accuracy and accuracy of filling.
B. Structure
The main parts of the automatic paste filling machine include: filling system, conveying system, control system, positioning system, etc. Among them, the filling system is composed of filling heads, filling pipes, and pneumatic cylinders; the conveying system is composed of conveyor belts, motors, and frequency converters; the control system is composed of PLC controllers, man-machine interfaces, and electrical components; the positioning system is composed of positioning devices , Clamping device composition.
C. Workflow
The working process of the automatic paste filling machine is as follows:
1. Move the empty bottle to the conveyor belt and fix the position by the positioning device.
2. The motor drives the conveyor belt to send the empty bottles to the filling area.

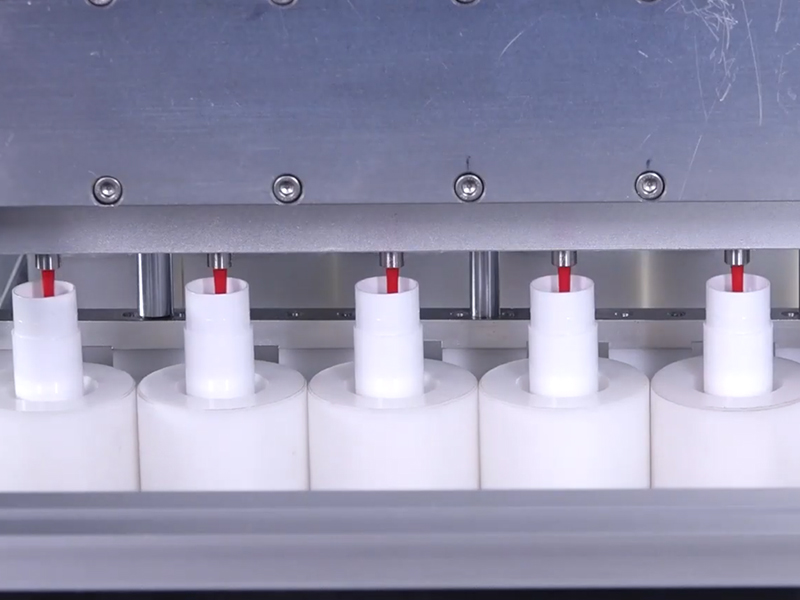

3. After the bottle reaches the filling area, the pneumatic cylinder pushes the filling head to complete the paste filling.
4. After the filling is completed, the pneumatic cylinder withdraws and the filling head returns to the initial position.
5. The filled bottles continue to be sent to the next process by the conveyor belt.
D. Features
The automatic paste filling machine has the following characteristics:
1. High precision: Filling with pneumatic control technology, high filling precision and strong accuracy.
2. High degree of automation: the entire filling process is automated, with high work efficiency and low labor costs.
3. Easy to operate: friendly man-machine interface, simple and convenient operation, easy to learn and master.
4. Wide range of applications: It is suitable for filling various pastes, emulsions and other products, and is widely used in cosmetics, food, medicine and other fields.
5. Compact structure: the equipment is small in size and occupies a small area, which is convenient for the layout and adjustment of the production line.
The automatic paste filling machine of GST non-standard automation equipment customization manufacturer is a high-efficiency and high-precision filling equipment, which can greatly improve filling efficiency and accuracy, reduce labor costs, and is widely used in various fields.
