GST-Automatic syringe filling machines

 Product description.  This automatic production line is based on the customer‘s current syringe drug semi-automatic filling line combined together, integrated mechanical, pneumatic and automatic

Products

  Product description.

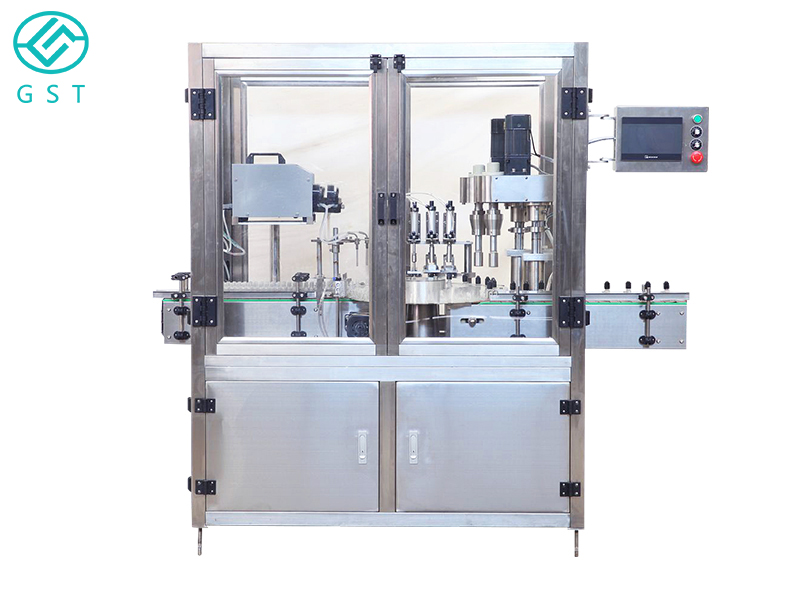

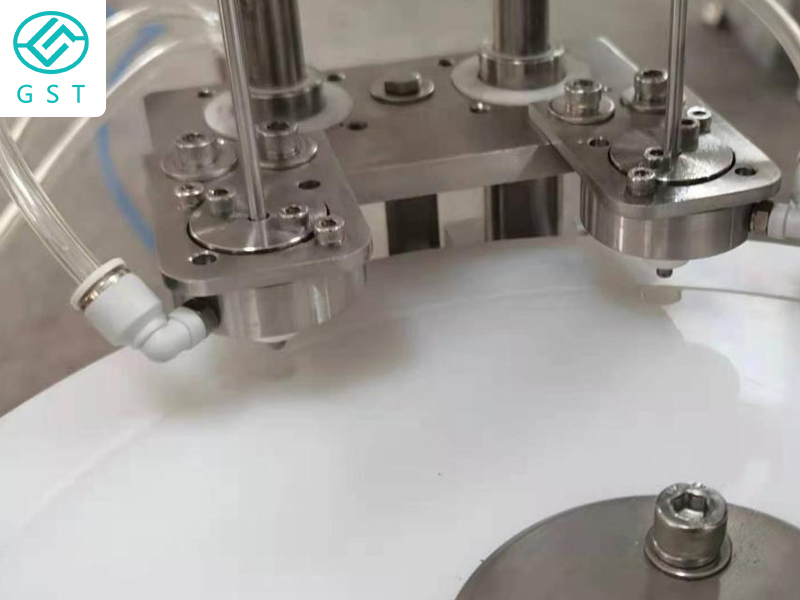

  This automatic production line is based on the customer's current syringe drug semi-automatic filling line combined together, integrated mechanical, pneumatic and automatic as one, increasing the degree of automation; from the loading line and vibration plate automatically into the syringe barrel, end caps, gel plugs, first after cleaning, silicification, then gel plug assembly, after completion and then into the filling area for metering filling, filling good and then followed by screwing end caps, then into the The good products go into the sterilisation tray for loading and the automatic finished product, completing the filling line function.

  The automatic production line is stable, low defective rate, easy maintenance, safe and reliable, in line with GMP drug tube production, gel filling and packaging standards.

  Machine features.

  1) The production line adopts European high standard steel structure;

  2) PLC with touch screen control, simple and intuitive operation;

  3) High efficiency electronic cam with precision mechanical cams to unify the main power, improve stability and durability;

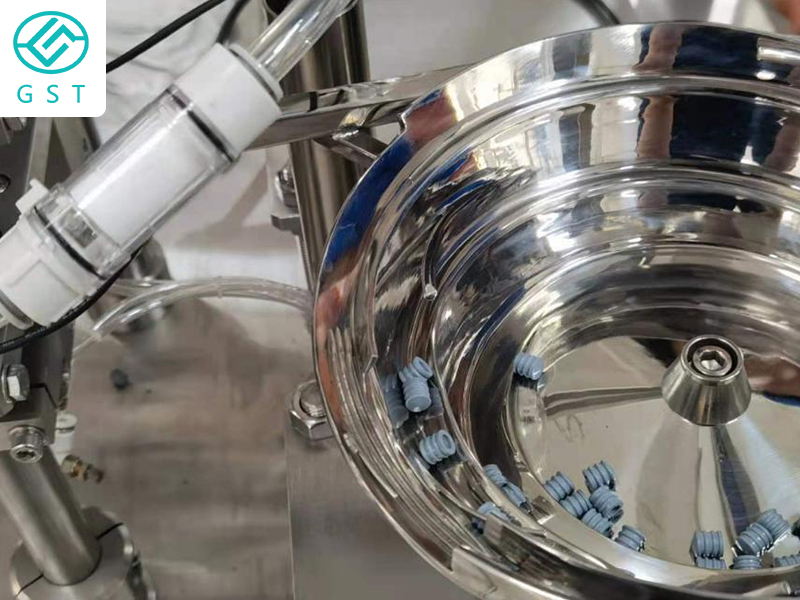

  4) Adopt vibration feeding method to improve the feeding effect.

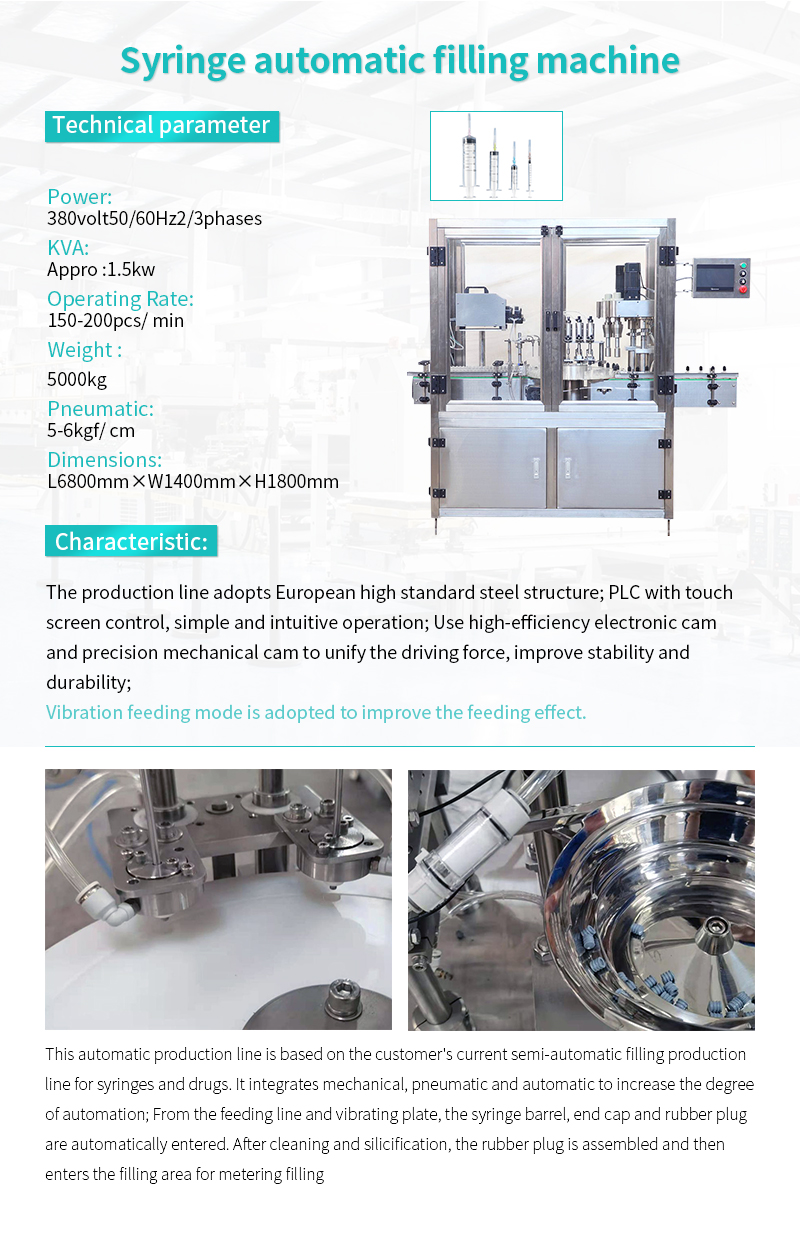

  Technical parameters.

  Power source: 380VAC, 50/60Hz, 2/3 phase;

  Power: 1.5kw

  Working speed: 150-200pcs/min

  Machine weight: 5000kg

  Air source: 5-6kgf/cm²

  Overall Dimension: L6800*W1400*H1800mm
