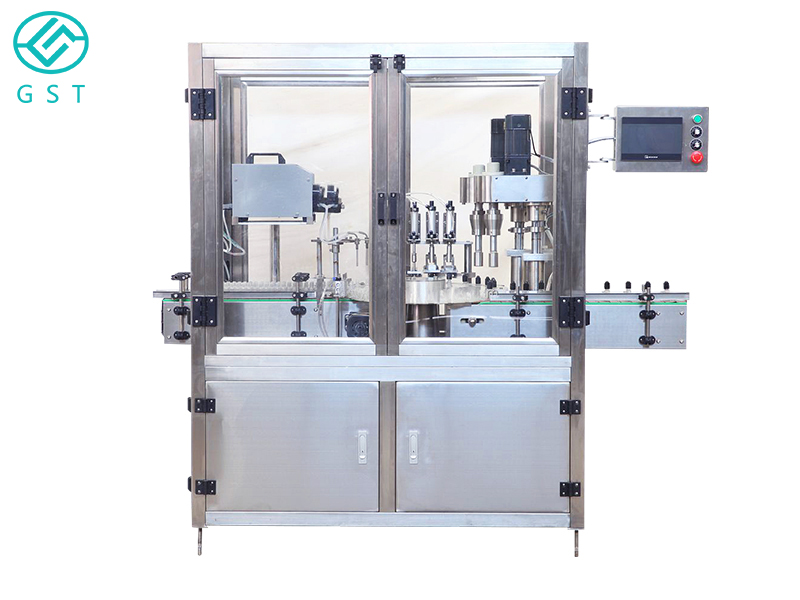

Medical Consumables Syringe Automatic Filling Machine

　　Medical Consumables Syringe Automatic Filling Machine

　　Product Description:

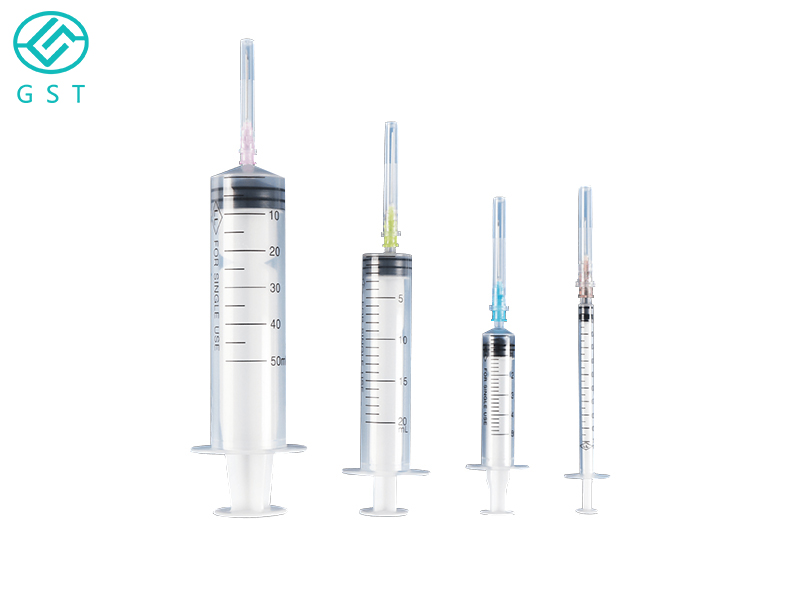

　　This automatic production line is based on the combination of the customer's current semi-automatic filling production line for syringe medicines. It integrates machinery, pneumatics, and automation to increase the degree of automation; it automatically enters the syringe barrel, end cap, and rubber stopper from the feeding line and vibrating plate. After cleaning and silicification, the rubber plug is assembled, and then it enters the filling area for star counting filling. After filling, the end cap is screwed, and then it enters the inspection area for inspection. The defective products are eliminated, and the good products enter the extinction The bacteria tray is loaded into the tray, and the finished product is automatically finished, completing the function of the filling line.

　　The automatic production line runs stably, has low defect rate, is easy to maintain, is safe and reliable, and complies with GMP drug tube production and gel filling and packaging standards.

　　Machine features:

　　1) The production line adopts European high standard steel structure;

　　2) Using PLC with touch screen control, the operation is simple and intuitive;

　　3) Use high-efficiency electronic cams and precision mechanical cams to unify the active force and improve stability and durability;

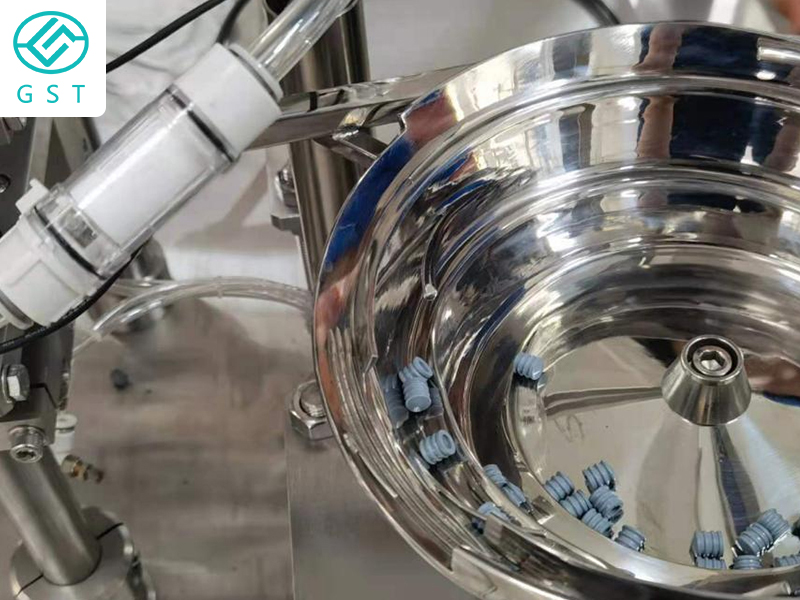

　　4) Vibration feeding method is adopted to improve the feeding effect.

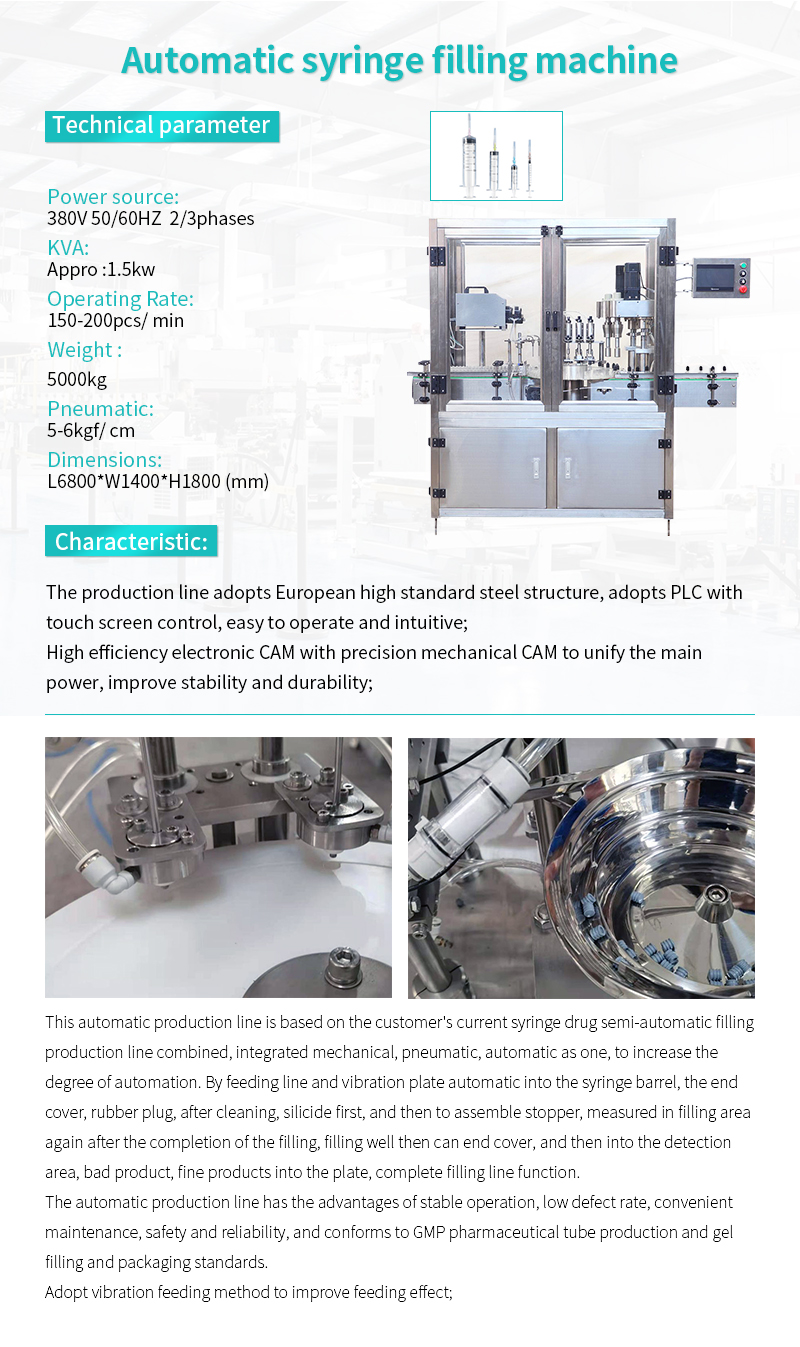

　　technical parameter:

　　Power supply: 380VAC, 50/60Hz, 2/3 phase; Power: 1.5kw

　　Working speed: 150-200pcs/min Machine weight: 5000kg

　　Air source: 5-6kgf/cm2

　　Dimensions: L6800*W1400*H1800mm
