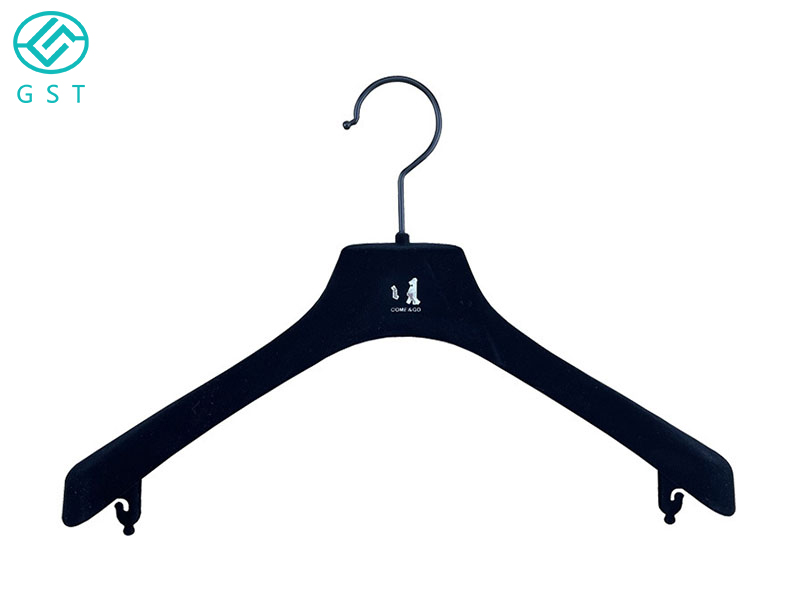

Machine Description. This machine is developed according to the requirements of plastic hanger factory customers, the machine is suitable for various materials of plastic hanger printing, can also adapt to a variety of hanger screen printing, different models of hanger need to replace the jig and adjust the material slot, printing LOGO, printing code, etc.;

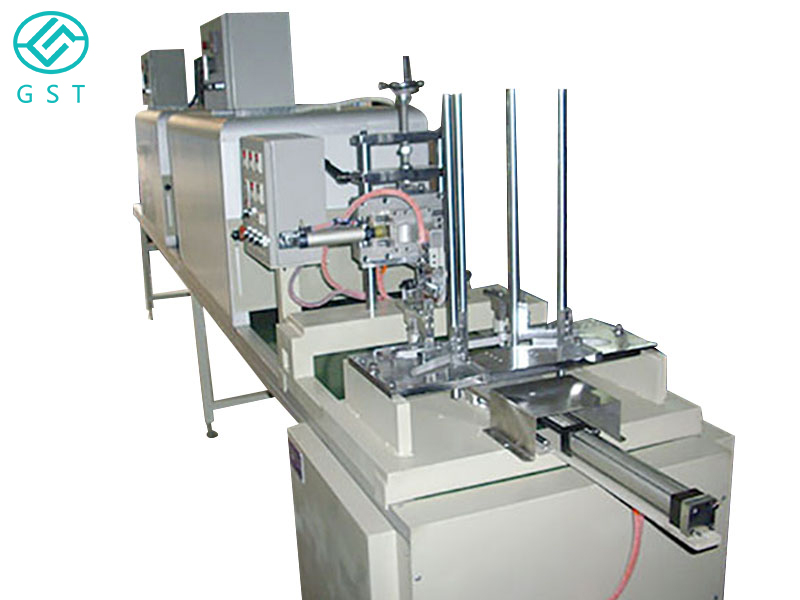

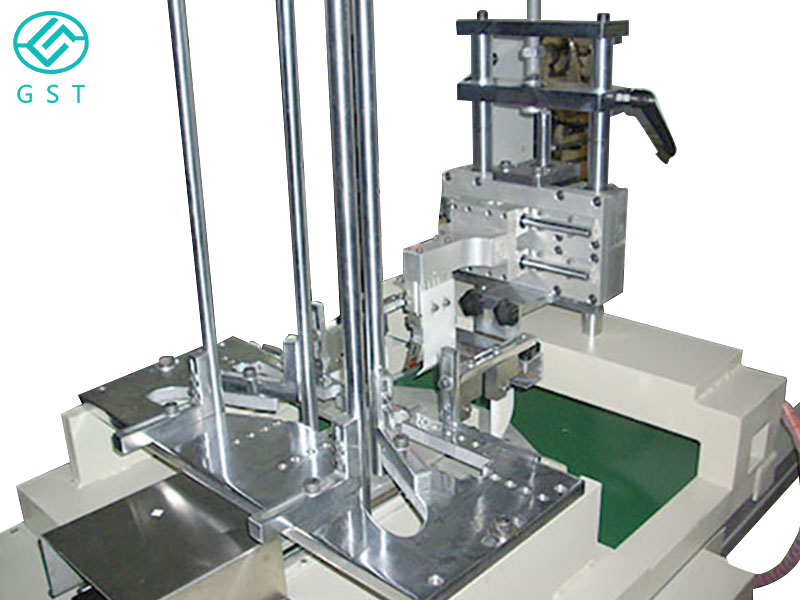

Machine Description. This machine is developed according to the requirements of plastic hanger factory customers, the machine is suitable for various materials of plastic hanger printing, can also adapt to a variety of hanger screen printing, different models of hanger need to replace the jig and adjust the material slot, printing LOGO, printing code, etc.; machine is mainly based on the original traditional pad printing machine for transformation, increase the mechanism, simulate the evolution of robot, etc., hanger by the material slot into, robot Automatic loading, automatic transmission, automatic positioning pad printing, according to the degree of ink dry and wet control drying, and then automatic feeding, only manual adding and finally receiving materials, machine positioning precision, two-colour secondary pad printing can also ensure the position tolerance, one person can look after 2-3 machines, breaking the traditional pad printing of one person a machine rule, solve the current recruitment difficulties, the situation of labour shortage, small footprint, improve efficiency, ensure Quality, cost reduction, to the company won the absolute advantage of peer competition.

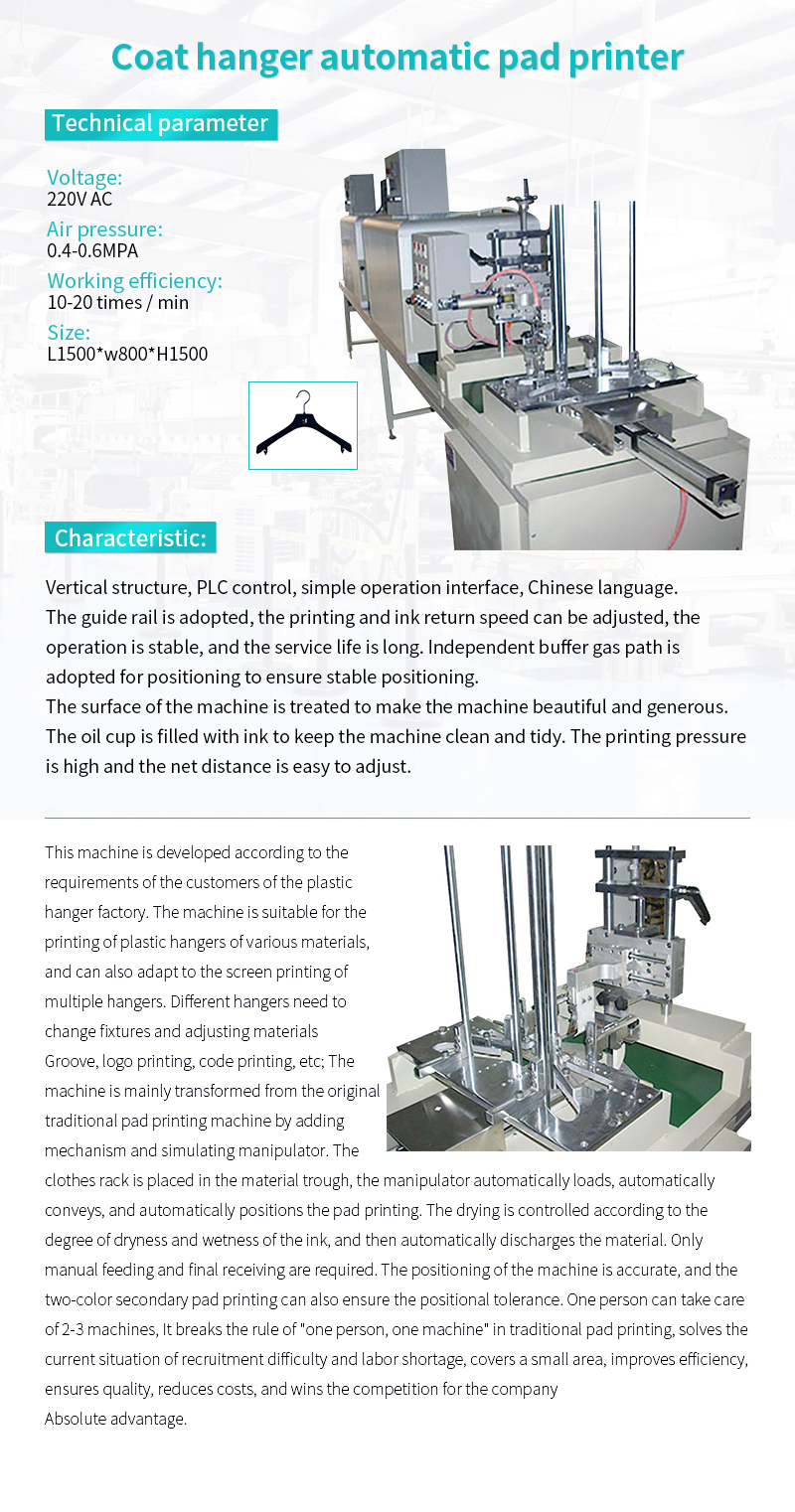

Technical parameters.
1. Vertical structure, PLC control, simple operation interface, language Chinese.
2. Guided by guide rails. Printing and ink return speed adjustable, smooth running, long service life.
3. Independent buffer air circuit for positioning, ensuring smooth positioning.
4. The surface of the machine is treated to make the machine beautiful and generous.
5. The oil cup is filled with ink to keep the machine clean and tidy, and the printing pressure and screen distance are convenient and easy to adjust.
6. The whole machine is equipped with safety protection device
7. The cylinder and solenoid valve are made by Taiwan Adcock, and the electrical appliances are made by Omron;
8. Voltage: 220V AC Pneumatic pressure: 0.4-0.6MPA;
9. Work efficiency: 10-20 times / min, size: L1500*W800*H1500
