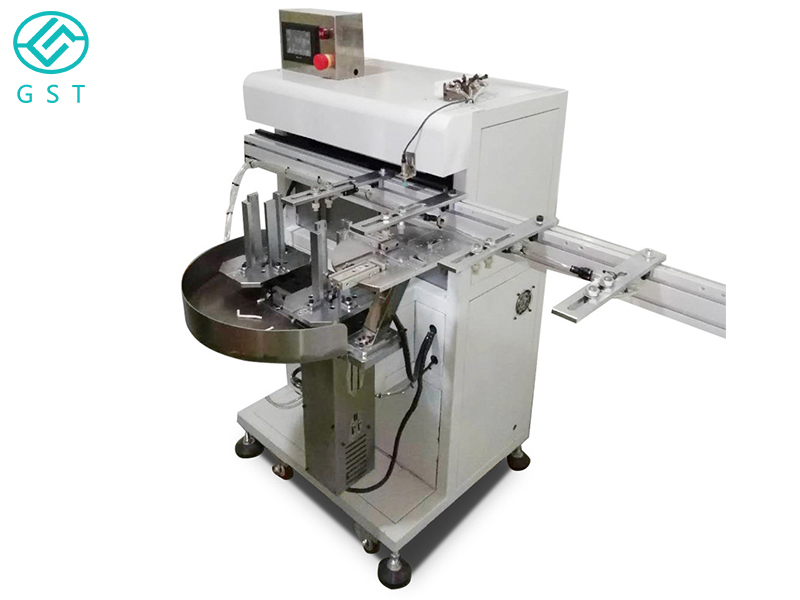

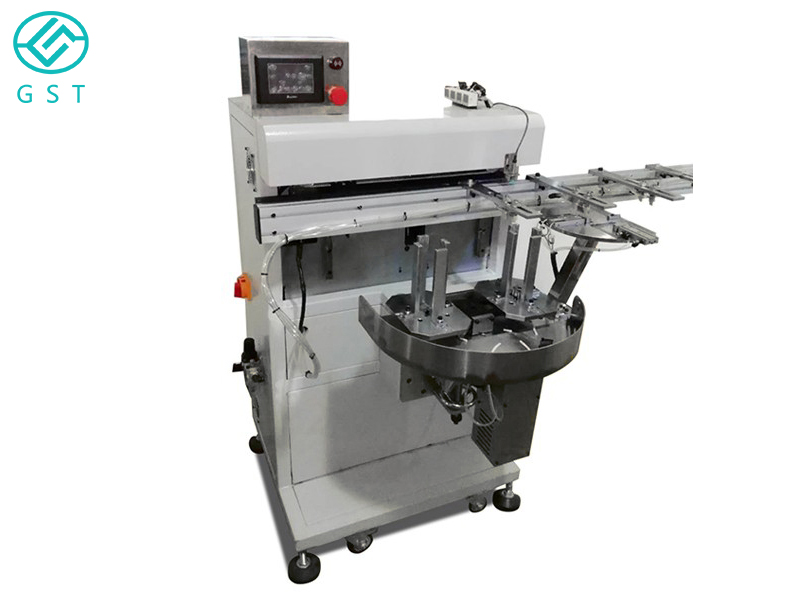

GST-Automatic pick and place robots for punching machines

　　Machine description. This machine originated from a friend's stamping factory labor-intensive, low safety factor, work post intimidation and other problems developed, because the thickness of semi-finished products thin, and also with a little oil, viscosity slightly strong reason, we after six months of testing, research, pondering, and finally came to a conclusion production, and in the machine debugging also appeared in a series of unknown problems and then one by one to eliminate before out this punching machine supporting robot; after After several friends feedback and then improve, and now and the punching machine with a very beautiful, especially to avoid 2 or more pieces of material to avoid the pressure die or die punching bad problems; this equipment by the PLC digital system control, the material plate automatically orderly row of workpieces; manual sheet material into the workstation push material station, servo motor X-axis direction is equipped with a number of pick-up robot (vacuum or clamping jaws), the Bo piece of workpieces to pick up the fixed The second robot takes the positioned sheet and puts it into the mould station, the mould station stamps it and puts it into the secondary mould for secondary moulding, the second moulding is finished and the robot takes the finished product and puts it onto the unloading conveyor belt, and with the function of drop detection and drop counting, the finished product is stacked to the required quantity and then moves one step; it can always be lined up in the flow line, and the manual worker takes the finished product in the flow line. The finished products are taken on the flow line; the whole automation process is detected by induction switches, photoelectric switches, etc., which ensures the safety, stability and speed of the automation operation, improves the production efficiency and labour conditions. The equipment can be widely used in machinery, stamping, metal forming and other industries.

　　The company produces a variety of injection molding machine manipulator, non-standard manipulator (customized, placed insert) all kinds of punching machine manipulator (drop, punching, deep drawing, forming), welcome the need of friends call people to consult.

　　Detailed information

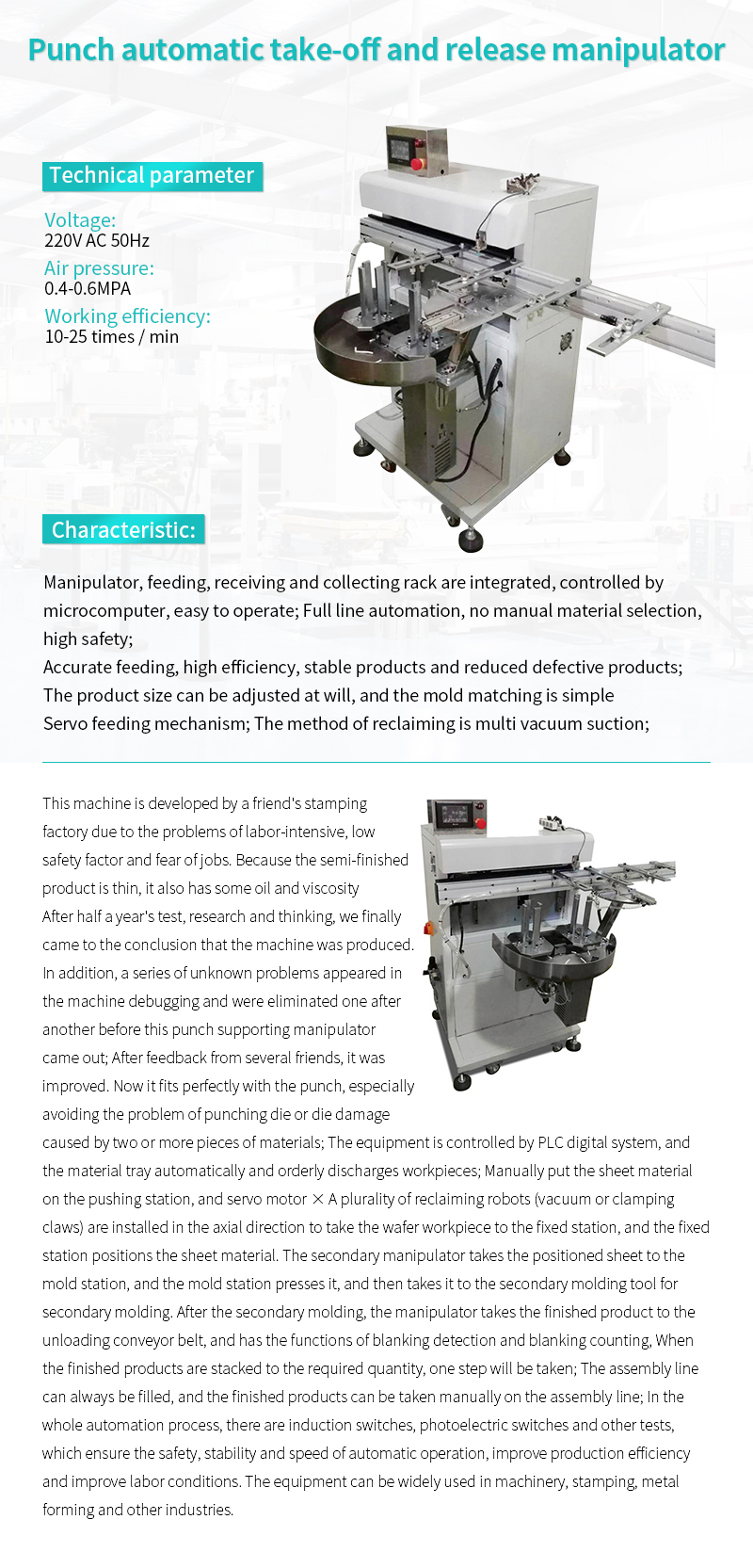

　　Technical parameters.

　　1、Manipulator, feeding, receiving and collecting material in one;

　　2、Adopt microcomputer control, easy to operate;

　　3、The whole line is automatic, no manual material selection, high safety;

　　4、Accurate feeding, high efficiency, stable products, reduce defective products;

　　5、Product size can be adjusted at will, easy to match the mould;

　　6、Servo feeding mechanism;

　　7、Multi-vacuum suction for material picking;

　　8、Voltage: 220VAC, 50HZ;

　　9、Air pressure: 0.4-0.6MPA;

　　10、Working efficiency: 10-25 times/ min.
