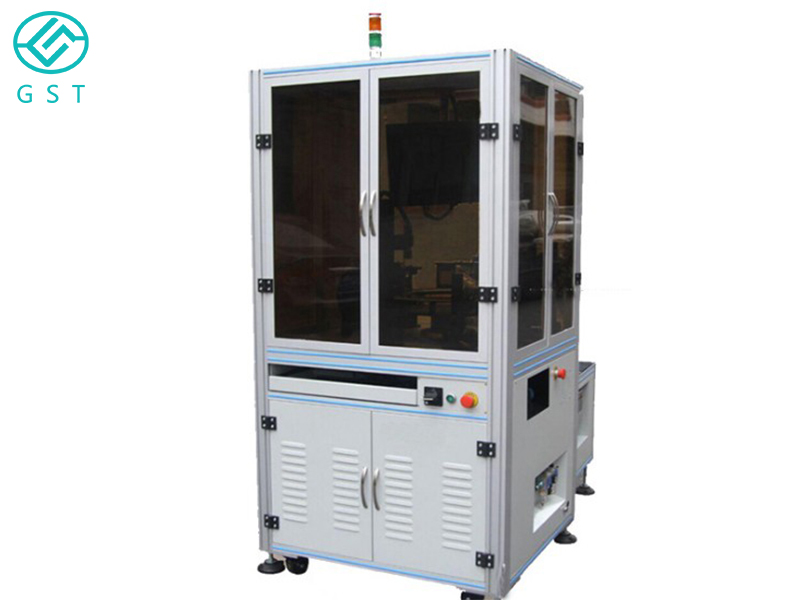

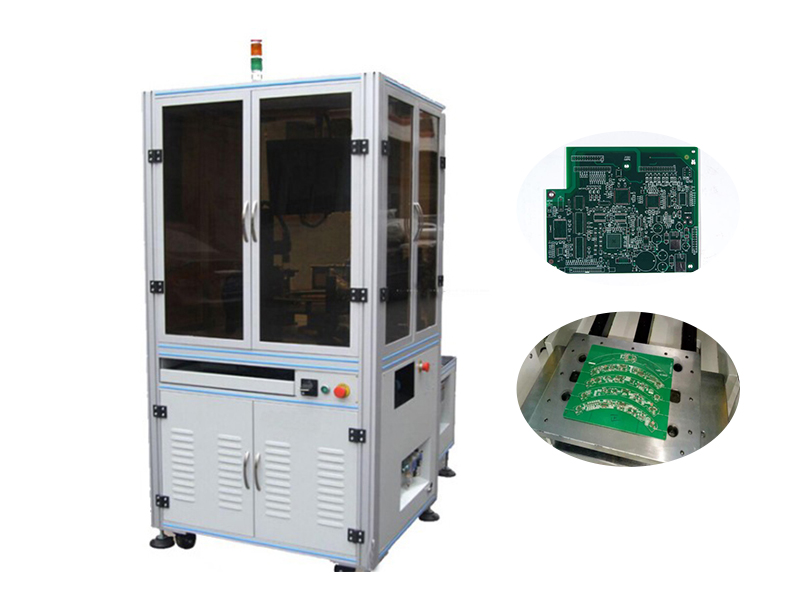

Machine Description:

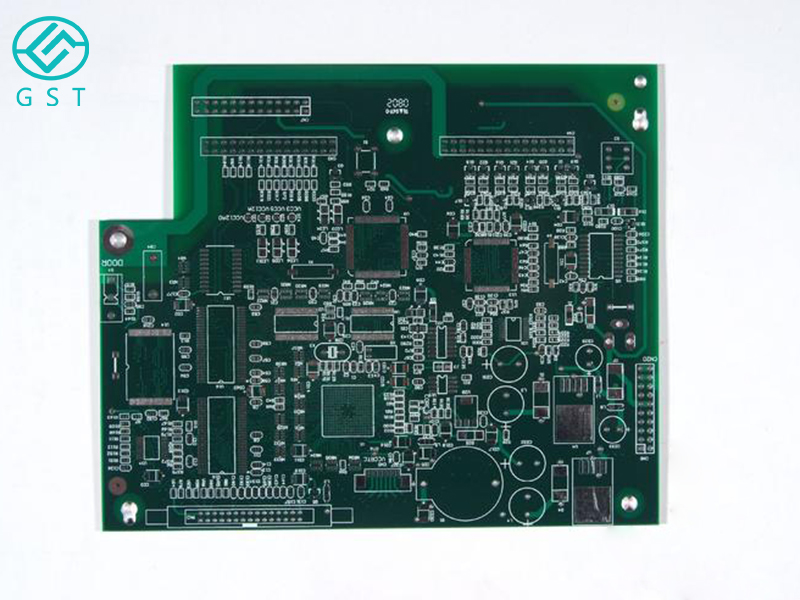

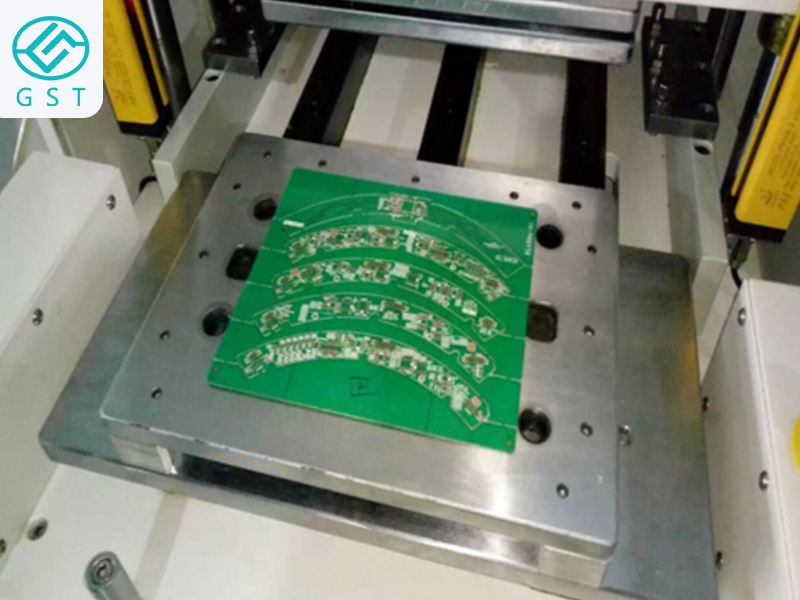

With the development of science and technology, industrial reshuffle, the increasing maturity of all walks of life, the original manual release of the board, sticking tape, positioning and a series of worker operations are all operated automatically by the machine, the manual only need to put the PCB board into the machine's silo, and then put the carrier into the carrier silo, the manipulator automatically take out the carrier positioning, and then the PCB board is taken out and put into the carrier, and then sticking tape to fix it, and wait for the solder paste printing machine to Waiting for tin paste printing machine to give a signal, the loaded PCB board is automatically transported to enter the tin paste printing.
Technical parameters:
1. power supply: 220VAC, 50Hz/60Hz, 20KW.
2. air pressure: 0.4-0.6MPA; 3.
3. Overall dimensions: 1500*1200*1500; 4.
4. Working efficiency: 15-20 times / min; 5.
5. Applicable industries: SMT electronic products industry.
