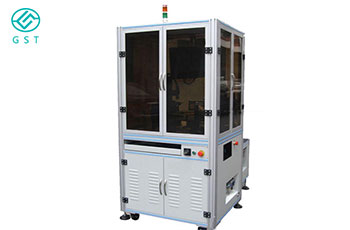

Machine description: with the development of technology, industrial shuffle, the increasing maturity of various industries, the original manual put the board, paste paper, positioning and a series of worker operations are all automatically operated by the machine, the manual only need to put the PCB board into the machine bin, and then put the carrier into the carrier bin, the robot automatically take out the carrier positioning, and then take out the PCB board into the carrier, and then paste paper fixed, waiting for The solder paste printing machine gives a signal and the loaded PCB board is automatically transported over into the solder paste printing.

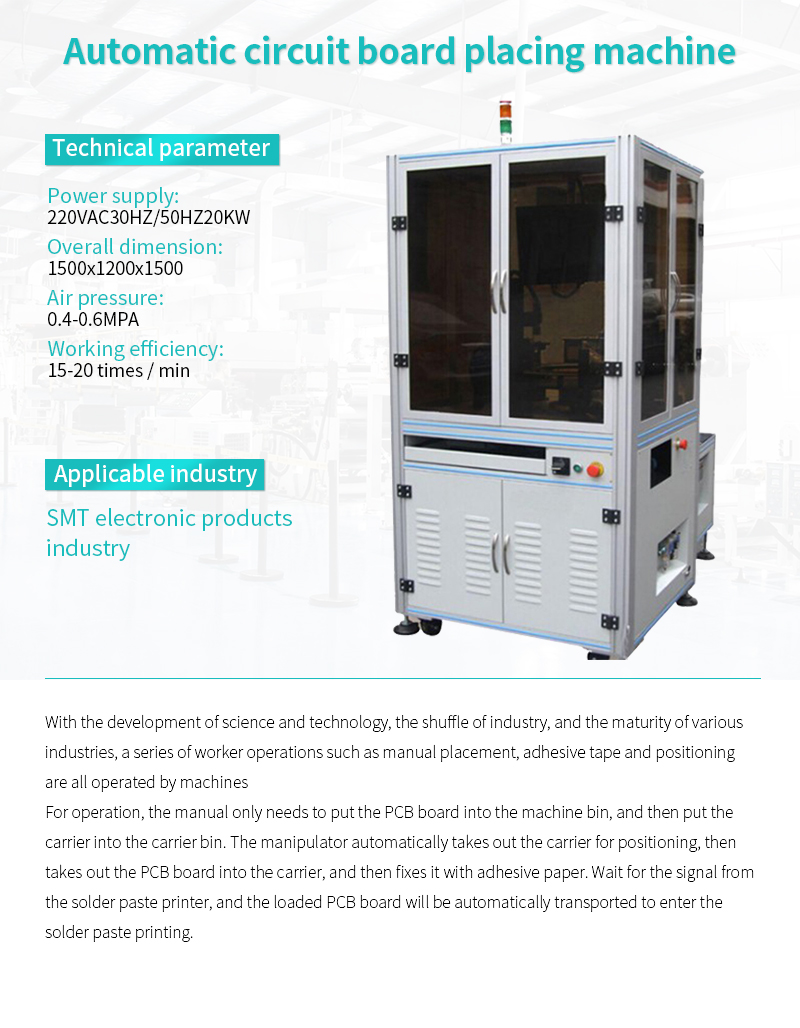

Technical parameters:
1. power supply: 220VAC, 50Hz/60Hz, 20KW.
2. air pressure: 0.4-0.6MPA.
3. external dimension: 1500*1200*1500.
4. working efficiency: 15-20 times/ min.
5. Applicable industries: SMT electronics industry.
